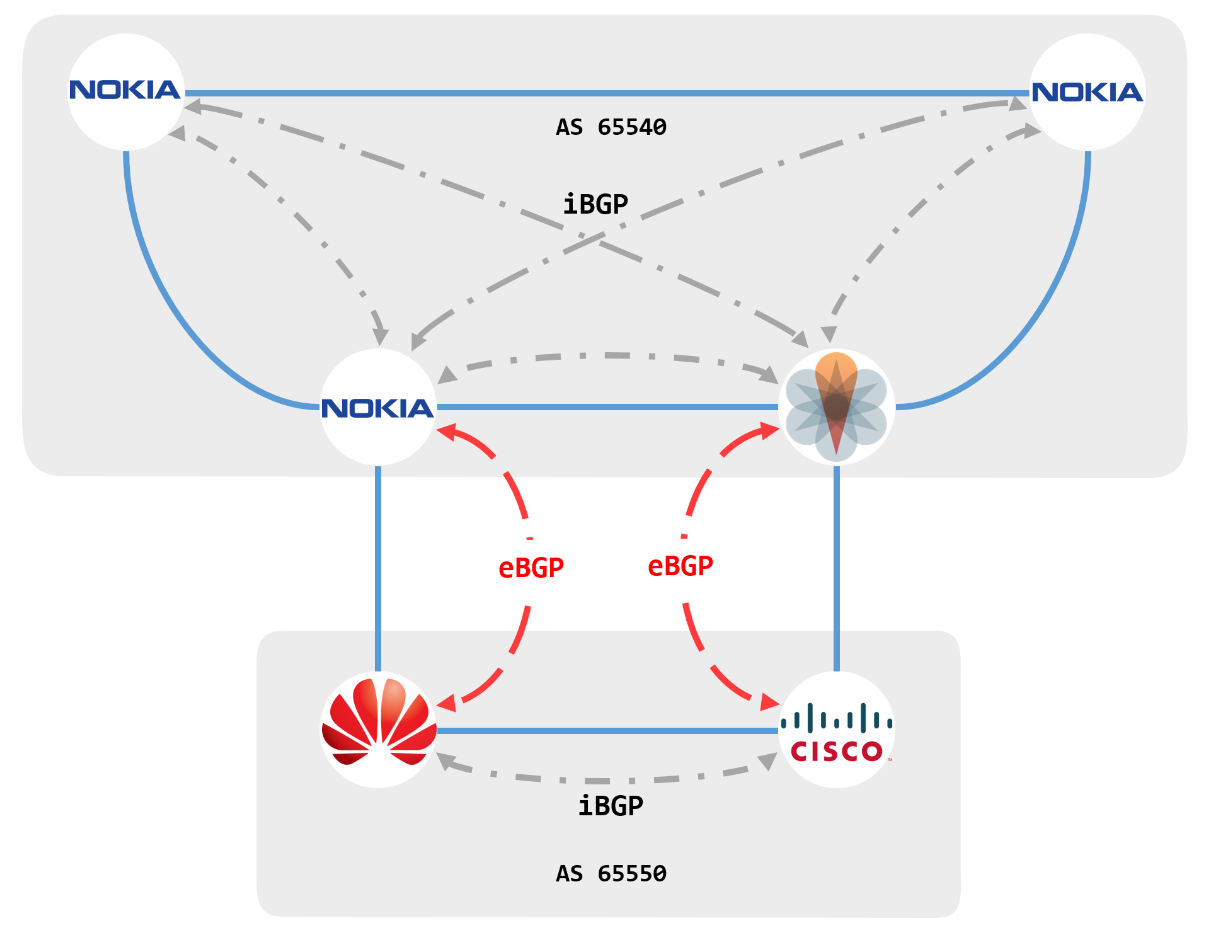

BGP is a routing protocol used to exchange routing information between different autonomous systems (Ases) and is described in RFC 4271, A BGP 4. An IGP such as OSPF or IS-IS have a main role for exchange of routing information within each AS. BGP is very scalable and stable routing, therefore bgp in most cases is deployed to improve/enhanced the existing network.

BGP can scale to million of routes and multiple copies of the Internet route table. Therefore, BGP is the fundamental routing protocol of the internet and is used by every ISP in the world for ISP interoperability. Right now BGP still growth to support various capabilities such as multiple protocol families. Read More

Khoirul Firdaus

Network Telco Engineer – SDN/NFV Enthusiast

Post Views: 2,906

Yeahhh…udah lama gk nulis, hehe…ini ane baru nulis lagi di blog routecloud,. oke kali ini mau ngebahas cara konekin router juniper menggunakan routing protokol rip, nah mari kita lihat gambar berikut ini supaya lebih jelas 🙂

Siippp..gambar sudah ada,,jadi tinggal config dah..

#01 Config IP di R1, R2, R3

R1:

set interfaces ge-0/0/0 unit 12 vlan-id 12
set interfaces ge-0/0/0 unit 12 family inet address 10.0.0.1/30
set interfaces ge-0/0/1 unit 0 vlan-id 1
set interfaces ge-0/0/1 unit 0 family inet address 172.16.0.1/32
set interfaces lo0 unit 1 family inet address 192.168.1.1/32

set interfaces ge-0/0/0 unit 12 vlan-id 12

set interfaces ge-0/0/0 unit 12 family inet address 10.0.0.1/30

set interfaces ge-0/0/1 unit 0 vlan-id 1

set interfaces ge-0/0/1 unit 0 family inet address 172.16.0.1/32

set interfaces lo0 unit 1 family inet address 192.168.1.1/32

R2:

set interfaces ge-0/0/1 unit 2 vlan-id 2
set interfaces ge-0/0/1 unit 2 family inet address 172.16.2.2/32
set interfaces ge-0/0/2 unit 12 vlan-id 12
set interfaces ge-0/0/2 unit 12 family inet address 10.0.0.2/30
set interfaces ge-0/0/2 unit 23 vlan-id 23
set interfaces ge-0/0/2 unit 23 family inet address 10.0.0.5/30
set interfaces lo0 unit 2 family inet address 192.168.2.2/32

set interfaces ge-0/0/1 unit 2 vlan-id 2

set interfaces ge-0/0/1 unit 2 family inet address 172.16.2.2/32

set interfaces ge-0/0/2 unit 12 vlan-id 12

set interfaces ge-0/0/2 unit 12 family inet address 10.0.0.2/30

set interfaces ge-0/0/2 unit 23 vlan-id 23

set interfaces ge-0/0/2 unit 23 family inet address 10.0.0.5/30

set interfaces lo0 unit 2 family inet address 192.168.2.2/32

R3:

set interfaces ge-0/0/0 unit 23 vlan-id 23
set interfaces ge-0/0/0 unit 23 family inet address 10.0.0.6/30
set interfaces ge-0/0/1 unit 3 vlan-id 3
set interfaces ge-0/0/1 unit 3 family inet address 192.168.3.3/32
set interfaces lo0 unit 3 family inet address 172.16.3.3/32

set interfaces ge-0/0/0 unit 23 vlan-id 23

set interfaces ge-0/0/0 unit 23 family inet address 10.0.0.6/30

set interfaces ge-0/0/1 unit 3 vlan-id 3

set interfaces ge-0/0/1 unit 3 family inet address 192.168.3.3/32

set interfaces lo0 unit 3 family inet address 172.16.3.3/32

#02 Setting Routing RIP

R1:

set protocols rip import rip-import
set protocols rip group rip-group export advertise-rip
set protocols rip group rip-group neighbor ge-0/0/0.12

set protocols rip import rip-import

set protocols rip group rip-group export advertise-rip

set protocols rip group rip-group neighbor ge-0/0/0.12

R2:

set protocols rip group rip-group export advertise-rip
set protocols rip group rip-group neighbor ge-0/0/2.12
set protocols rip group rip-group neighbor ge-0/0/2.23

set protocols rip group rip-group export advertise-rip

set protocols rip group rip-group neighbor ge-0/0/2.12

set protocols rip group rip-group neighbor ge-0/0/2.23

R3:

set protocols rip group rip-group export advertise-rip
set protocols rip group rip-group neighbor ge-0/0/0.23

1 2	set protocols rip group rip-group export advertise-rip set protocols rip group rip-group neighbor ge-0/0/0.23

#03 Konfigurasi Policy untuk meng-advertise protocol direct dan rip,

R1:

set policy-options policy-statement advertise-rip term 1 from protocol direct
set policy-options policy-statement advertise-rip term 1 from protocol rip
set policy-options policy-statement advertise-rip term 1 then accept

set policy-options policy-statement advertise-rip term 1 from protocol direct

set policy-options policy-statement advertise-rip term 1 from protocol rip

set policy-options policy-statement advertise-rip term 1 then accept

R2:

set policy-options policy-statement advertise-rip term 1 from protocol direct
set policy-options policy-statement advertise-rip term 1 from protocol rip
set policy-options policy-statement advertise-rip term 1 then accept

set policy-options policy-statement advertise-rip term 1 from protocol direct

set policy-options policy-statement advertise-rip term 1 from protocol rip

set policy-options policy-statement advertise-rip term 1 then accept

R3:

set policy-options policy-statement advertise-rip term 1 from protocol direct
set policy-options policy-statement advertise-rip term 1 from protocol rip
set policy-options policy-statement advertise-rip term 1 then accept

set policy-options policy-statement advertise-rip term 1 from protocol direct

set policy-options policy-statement advertise-rip term 1 from protocol rip

set policy-options policy-statement advertise-rip term 1 then accept

#04 Klo sudah selsai jangan lupa di commit, saatnya anda melakukan test, apakah R1, R2, R3 sudah saling tukar routing information? mari kita cek dengan show route.

root@R3# run show route protocol rip

inet.0: 10 destinations, 11 routes (10 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

10.0.0.0/30        *[RIP/100] 01:09:22, metric 2, tag 0
> to 10.0.0.5 via ge-0/0/0.23
172.16.0.1/32      *[RIP/100] 01:09:22, metric 3, tag 0
> to 10.0.0.5 via ge-0/0/0.23
172.16.2.2/32      *[RIP/100] 01:09:22, metric 2, tag 0
> to 10.0.0.5 via ge-0/0/0.23
192.168.1.1/32     *[RIP/100] 01:09:22, metric 3, tag 0
> to 10.0.0.5 via ge-0/0/0.23
192.168.2.2/32     *[RIP/100] 01:09:22, metric 2, tag 0
> to 10.0.0.5 via ge-0/0/0.23
224.0.0.9/32       *[RIP/100] 01:09:22, metric 1
MultiRecv

root@R3# run show route protocol rip

inet.0: 10 destinations, 11 routes (10 active, 0 holddown, 0 hidden)

+ = Active Route, - = Last Active, * = Both

10.0.0.0/30 *[RIP/100] 01:09:22, metric 2, tag 0

> to 10.0.0.5 via ge-0/0/0.23

172.16.0.1/32 *[RIP/100] 01:09:22, metric 3, tag 0

> to 10.0.0.5 via ge-0/0/0.23

172.16.2.2/32 *[RIP/100] 01:09:22, metric 2, tag 0

> to 10.0.0.5 via ge-0/0/0.23

192.168.1.1/32 *[RIP/100] 01:09:22, metric 3, tag 0

> to 10.0.0.5 via ge-0/0/0.23

192.168.2.2/32 *[RIP/100] 01:09:22, metric 2, tag 0

> to 10.0.0.5 via ge-0/0/0.23

224.0.0.9/32 *[RIP/100] 01:09:22, metric 1

MultiRecv

nahh,,di R3 sudah dapat route ke 172.16.0.1 yang mana itu adalah ip R1, sory ye klo di gambar ip nya 172.16.1.1 hehe.. selanjutnya mari kita coba test ping

root@vMX-1# run ping 172.16.0.1 logical-system R3 rapid
PING 172.16.0.1 (172.16.0.1): 56 data bytes
!!!!!
--- 172.16.0.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 1.808/2.516/3.537/0.645 ms

[edit logical-systems R1]
root@vMX-1# run ping 172.16.0.1 logical-system R2 rapid
PING 172.16.0.1 (172.16.0.1): 56 data bytes
!!!!!
--- 172.16.0.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 1.307/1.414/1.606/0.112 ms

[edit logical-systems R1]
root@vMX-1# run ping 172.16.0.1 logical-system R1 rapid
PING 172.16.0.1 (172.16.0.1): 56 data bytes
!!!!!
--- 172.16.0.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max/stddev = 0.014/0.022/0.038/0.008 ms
