Konfigurasi EVPN MPLS antara Nokia dan Juniper Part 2

Pada posting sebelumnya saya telah melakukan semua basic konfigurasi meliputi IGP, MPLS/LDP, dan BGP signaling EVPN. Selanjutnya saya akan melakukan konfigurasi service Layer 2 menggunakan EVPN pada masing-masing PE router.

PE1

root@PE1# show

---<output omitted>----
ge-0/0/3 {
    flexible-vlan-tagging;
    encapsulation flexible-ethernet-services;
    unit 2100 {
        encapsulation vlan-bridge;
        vlan-id 2100;
    }
}
---<output omitted>----

routing-instances {
    EVPN {
        instance-type evpn;
        vlan-id none
        interface ge-0/0/3.2100;
        route-distinguisher 10.10.10.1:2000;
        vrf-target target:65000:2000;
        protocols {
            evpn;
        }
    }
[edit]
root@PE1#

PE2

A:PE2# configure service vpls 2000
A:PE2>config>service>vpls# info
----------------------------------------------
            bgp
                route-distinguisher 10.10.10.2:2000
                route-target export target:65000:2000 import target:65000:2000
            exit
            bgp-evpn
                vxlan
                    shutdown
                exit
                mpls
                    auto-bind-tunnel
                        resolution any
                    exit
                    no shutdown
                exit
            exit
            stp
                shutdown
            exit
            sap 1/1/5:10 create
                no shutdown
            exit
            no shutdown
----------------------------------------------
A:PE2>config>service>vpls#

Konfigurasi diatas akan menghasilkan EVPN route tipe 3 yaitu Inclusive PMSI (Provider Multicast Service Interface), untuk diketahui bahwa EVPN memiliki 5 tipe route yang berbeda-beda yaitu :

Route tipe 3 ini digunakan sebagai tunnel transport untuk trafik BUM (Broadcast, Unknown Unicast, Multicast), PE1 dan PE2 megenerate route ini dan di-advertise ke RR seberti pada output dibawah ini :

PE1

root@PE1> show route advertising-protocol bgp 10.10.10.10 table EVPN.evpn.0 detail

EVPN.evpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
* 3:10.10.10.1:2000::0::10.10.10.1/304 (1 entry, 1 announced)
 BGP group internal type Internal
     Route Distinguisher: 10.10.10.1:2000
     Route Label: 299840
     PMSI: Flags 0x0: Label 299840: Type INGRESS-REPLICATION 10.10.10.1
     Nexthop: Self
     Flags: Nexthop Change
     Localpref: 100
     AS path: [65000] I
     Communities: target:65000:2000
     PMSI: Flags 0x0: Label 299840: Type INGRESS-REPLICATION 10.10.10.1

root@PE1>

PE2

A:PE2# show router bgp routes evpn inclusive-mcast hunt

---<output-omitted>---

-------------------------------------------------------------------------------
RIB Out Entries
-------------------------------------------------------------------------------
Network        : N/A
Nexthop        : 10.10.10.2
To             : 10.10.10.10
Res. Nexthop   : n/a
Local Pref.    : 100                    Interface Name : NotAvailable
Aggregator AS  : None                   Aggregator     : None
Atomic Aggr.   : Not Atomic             MED            : 0
AIGP Metric    : None
Connector      : None
Community      : target:65000:2000 bgp-tunnel-encap:MPLS
Cluster        : No Cluster Members
Originator Id  : None                   Peer Router Id : 10.10.10.10
Origin         : IGP
AS-Path        : No As-Path
EVPN type      : INCL-MCAST
ESI            : N/A
Tag            : 0
Originator IP  : 10.10.10.2
Route Dist.    : 10.10.10.2:2000
Route Tag      : 0
Neighbor-AS    : N/A
Orig Validation: N/A
Source Class   : 0                      Dest Class     : 0
-------------------------------------------------------------------------------
PMSI Tunnel Attributes :
Tunnel-type    : Ingress Replication
Flags          : Type: RNVE(0) BM: 0 U: 0 Leaf: not required
MPLS Label     : LABEL 262139
Tunnel-Endpoint: 10.10.10.2
-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Routes : 3
===============================================================================
A:PE2#

Format prefix yang di advertise pada PE1 (Juniper) adalah 3:<RD>:<VLAN_ID>:<ROUTER_ID_LENGTH>:<ROUTER_ID> (line 4 sampai  14). Angka 3 menunjukan tipe route yang diadvertise, VLAN_ID adalah derivasi dari vlan logical interface, saat diadvertise nilainya akan diletakkan pada Ethernet Tag.

Perlu diperhatikan bahwa service VPN juniper tidak melakukan vlan striping pada saat memasuki network MPLS, berbeda dengan nokia yang bersifat service delimiting tag yang artinya tag vlan akan dilepas ketika memasuki MPLS network, oleh karena itu kita harus melakukan normalisasi VLAN pada juniper supaya VLAN tag di strip ketika memasuki MPLS network. Pada router nokia, service evpn layer 2 nilai Eth-Tag nya akan selalu 0 (nol).

Perintah yang digunakan untuk normalisasi vlan pada service evpn juniper adalah root@PE1# set routing-instances EVPN vlan-id none .

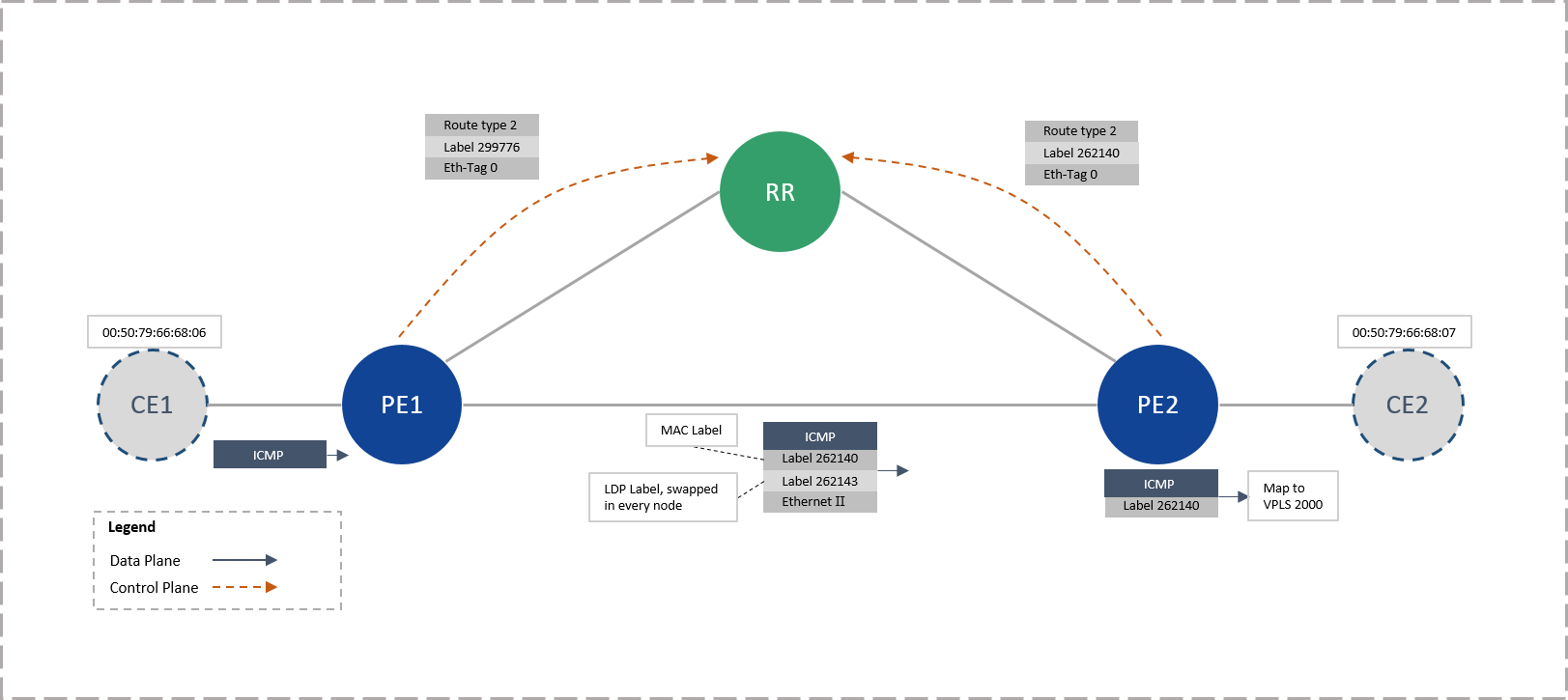

Berikut ilustrasi paket treatment jika ada broadcast traffic (ARP Request) yang masuk ke PE1 :

Nah, ketika proses ARP sudah selesai antara  CE1 dan CE2 maka setiap PE sudah menyimpan mac address CE1 dan CE2. Ketika CE1 dan CE2 ingin berkomunikasi maka inner label yang dipakai adalah label Mac Address (dikarenakan unicast traffic).

PE1

root@PE1> show route receive-protocol bgp 10.10.10.10 table EVPN.evpn.0 detail

EVPN.evpn.0: 4 destinations, 4 routes (4 active, 0 holddown, 0 hidden)
* 2:10.10.10.2:2000::0::00:50:79:66:68:07/304 (1 entry, 1 announced)
     Import Accepted
     Route Distinguisher: 10.10.10.2:2000
     Route Label: 262140
     ESI: 00:00:00:00:00:00:00:00:00:00
     Nexthop: 10.10.10.2
     MED: 0
     Localpref: 100
     AS path: I (Originator)
     Cluster list:  10.10.10.10
     Originator ID: 10.10.10.2
     Communities: target:65000:2000 unknown iana 30c

* 3:10.10.10.2:2000::0::10.10.10.2/304 (1 entry, 1 announced)
     Import Accepted
     Route Distinguisher: 10.10.10.2:2000
     Nexthop: 10.10.10.2
     MED: 0
     Localpref: 100
     AS path: I (Originator)
     Cluster list:  10.10.10.10
     Originator ID: 10.10.10.2
     Communities: target:65000:2000 unknown iana 30c
     PMSI: Flags 0x0: Label 262139: Type INGRESS-REPLICATION 10.10.10.2

root@PE1>

PE2

A:PE2# show router bgp routes evpn mac hunt
===============================================================================
 BGP Router ID:10.10.10.2       AS:65000       Local AS:65000
===============================================================================
 Legend -
 Status codes  : u - used, s - suppressed, h - history, d - decayed, * - valid
                 l - leaked, x - stale, > - best, b - backup, p - purge
 Origin codes  : i - IGP, e - EGP, ? - incomplete

===============================================================================
BGP EVPN MAC Routes
===============================================================================
-------------------------------------------------------------------------------
RIB In Entries
-------------------------------------------------------------------------------
Network        : N/A
Nexthop        : 10.10.10.1
From           : 10.10.10.10
Res. Nexthop   : 172.0.1.5
Local Pref.    : 100                    Interface Name : to-pe1
Aggregator AS  : None                   Aggregator     : None
Atomic Aggr.   : Not Atomic             MED            : None
AIGP Metric    : None
Connector      : None
Community      : target:65000:2000
Cluster        : 10.10.10.10
Originator Id  : 10.10.10.1             Peer Router Id : 10.10.10.10
Flags          : Used  Valid  Best  IGP
Route Source   : Internal
AS-Path        : No As-Path
EVPN type      : MAC
ESI            : ESI-0
Tag            : 0
IP Address     : N/A
Route Dist.    : 10.10.10.1:2000
Mac Address    : 00:50:79:66:68:06
MPLS Label1    : LABEL 299776           MPLS Label2    : N/A
Route Tag      : 0
Neighbor-AS    : N/A
Orig Validation: N/A
Source Class   : 0                      Dest Class     : 0
Add Paths Send : Default
Last Modified  : 00h02m47s

---<output-omitted>---
A:PE2#

Mac address CE2 * 2:10.10.10.2:2000::0::00:50:79:66:68:07/304 (line 4) yang diterima oleh PE1 dengan label 262140 (line 7), sedangkan PE2 menerima MAC address CE1 Mac Address : 00:50:79:66:68:06 (line 36) denga lable 299776 (line 37).

Era sekarang teknologi EVPN makin sering digunakan terutama pada environment datacenter, sebentar lagi mungkin akan merambah ke environment telco karena datacenter mulai tersebar di penjuru indonesia, nah challenge untuk telco network yaitu menyediakan transport untuk Interkoneksi Datacenter (DCI) tersebut, bagaimana kita seorang network engineer harus mengelola MAC address maupun IP yang berasal dari VM-VM yang ada di Datacenter supaya bisa tepat sasaran mencapai Datacenter lain. Sekian dulu pembahasan yang sangat sederhana ini, Wasalam.
